Suitable for
Universal Ledriving lightbar
Description

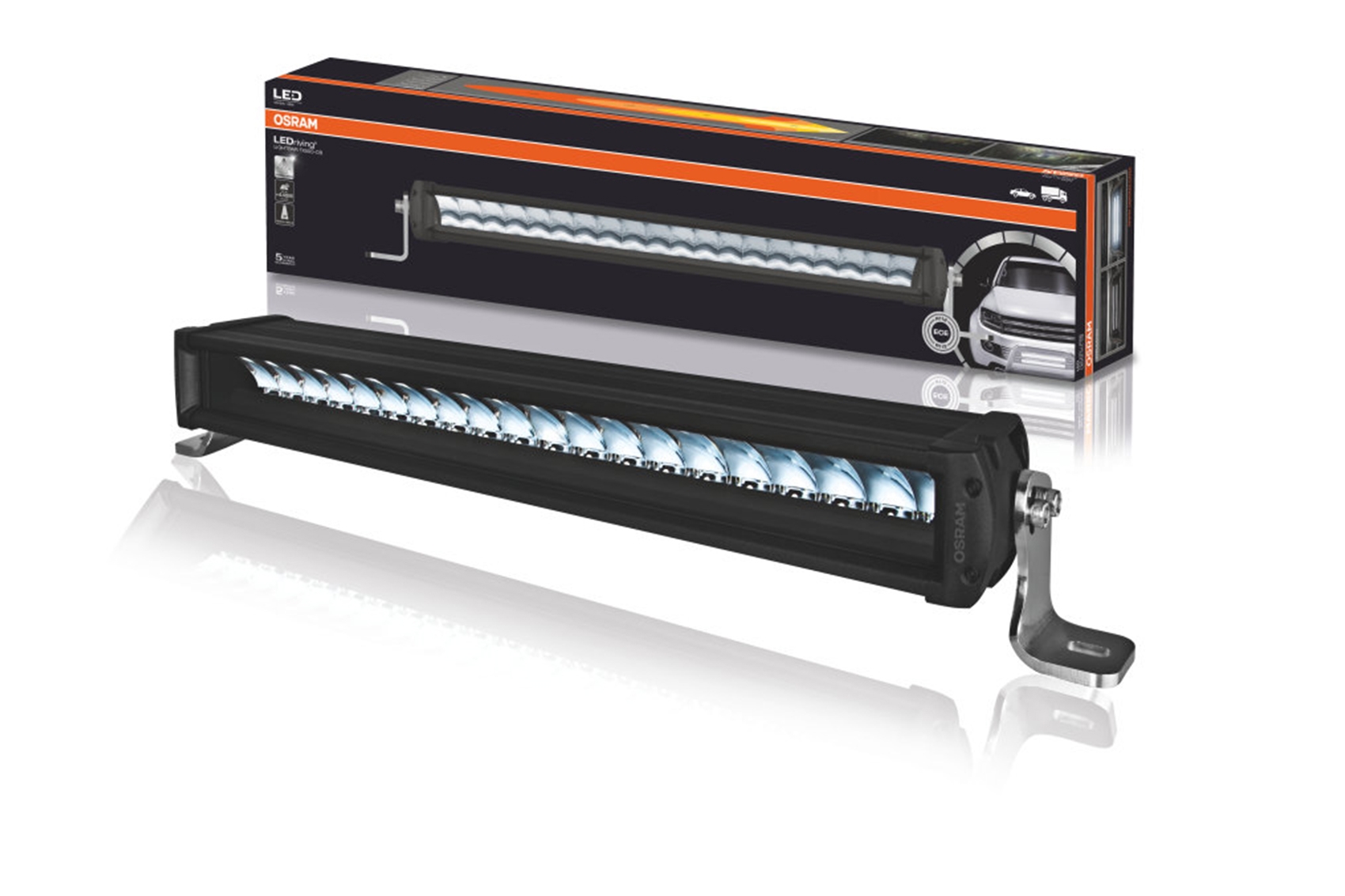

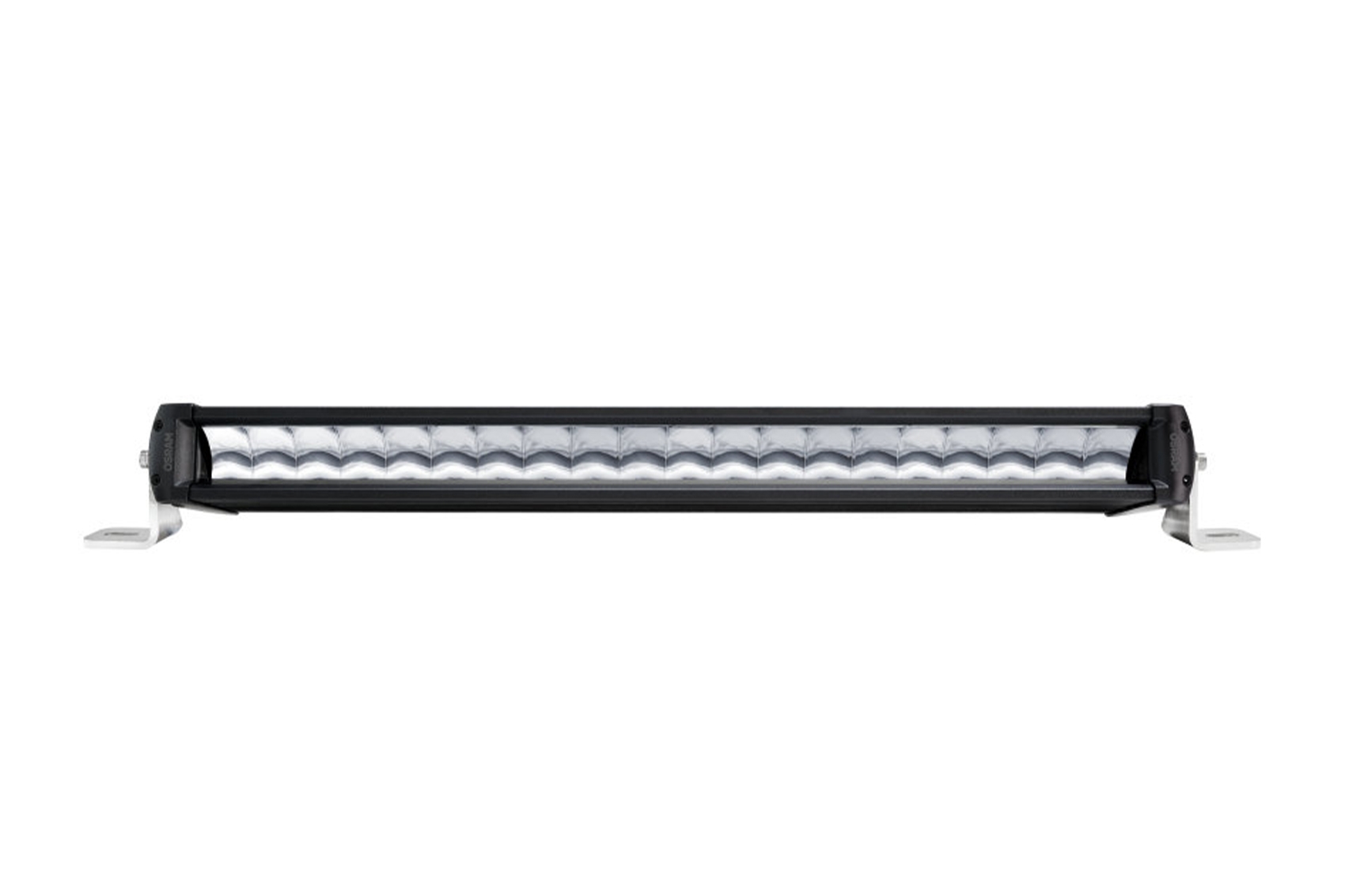

The LEDriving LIGHTBAR FX500-SP/-CB belong to the Functional Series and feature a fully ECE compliant auxiliary high beam. OSRAM offers the product in two versions: Spot (SP) and Combo (CB). The Spot beam pattern provides an improved far field illumination up to 450 meters with a 5°beam angle. The Combo beam pattern shows an improved far and near field illumination providing an up to 440 meters light beam with a 5°beam angle. The LED lights in Cool White generate an intense light up to 6000 Kelvin and are available for 12 and 24 volt vehicles. They are designed in a robust and compact design with a long lifetime of up to 5000 hours thanks to the integrated driver and thermal management system. Due to extremely robust polycarbonate lens, the lights endure heavy-duty applications and feature multiple voltage protection. OSRAM offers a 5 year guarantee on the LEDriving LIGHTBAR FX500-SP/-CB. Refer to www.osram.com/am-guarantee for precise conditions. Driving lights must be installed in pairs for 12/24 V-vehicles.
Electrical data
Nominal voltage
12/24 V
Nominal wattage
70 W
Test voltage
13.5 V
Photometrical data
Luminous flux
5500 lm
Color temperature
6000 K
Light distance at 1lx [PIM]
440 m
Dimensions & weight
Height
77.0 mm
Width
94.0 mm
Length
655.0 mm
Product weight
2100.00 g
Lifespan
Lifespan Tc
5000 h
Connector to lamp
DT Connector
Product type (off-road vs. on-road)
On-road
Approval marks – approval
E4 approval
Type of protection
IP67
Logistical data
Commodity code
851220009000

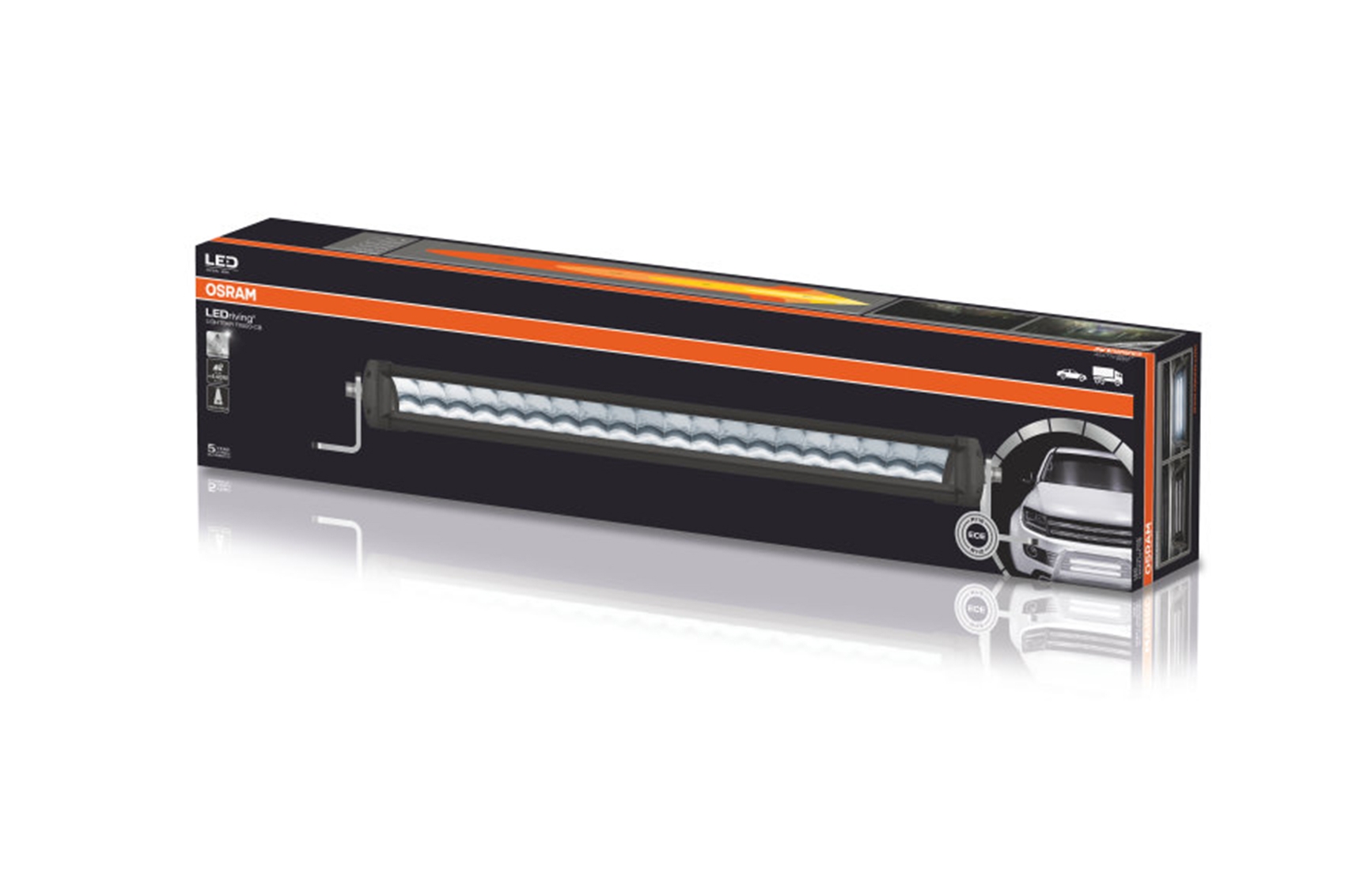

Packaging information
Dimension l x w x h
1 piece x 638mm x 137mm x 90mm 2338.00g 7.87dm³
4 pieces x 655mm x 295mm x 208mm 10166.00g 40.19dm³
