Suitable for
Universal LEDriving Cube
Description

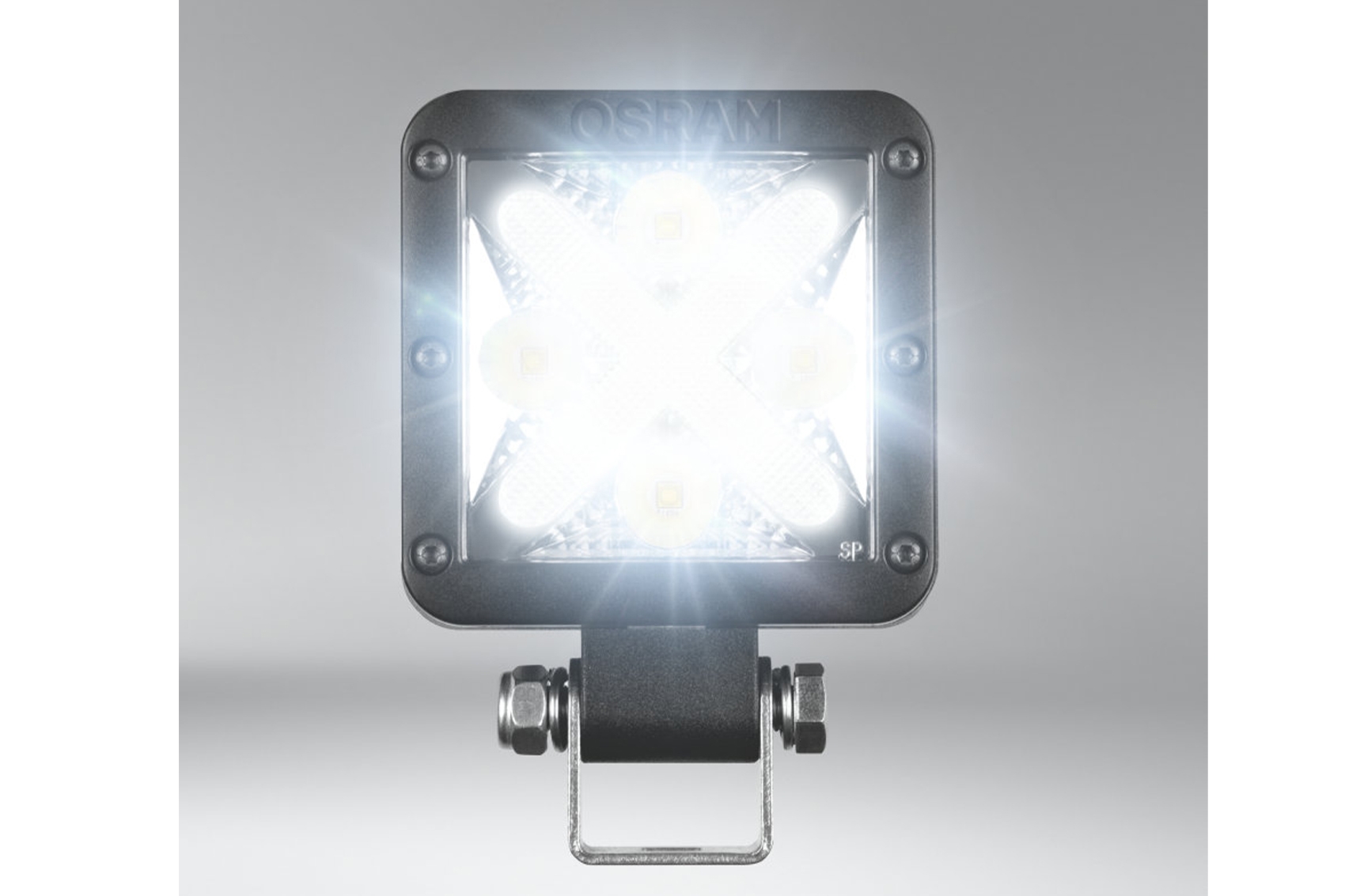

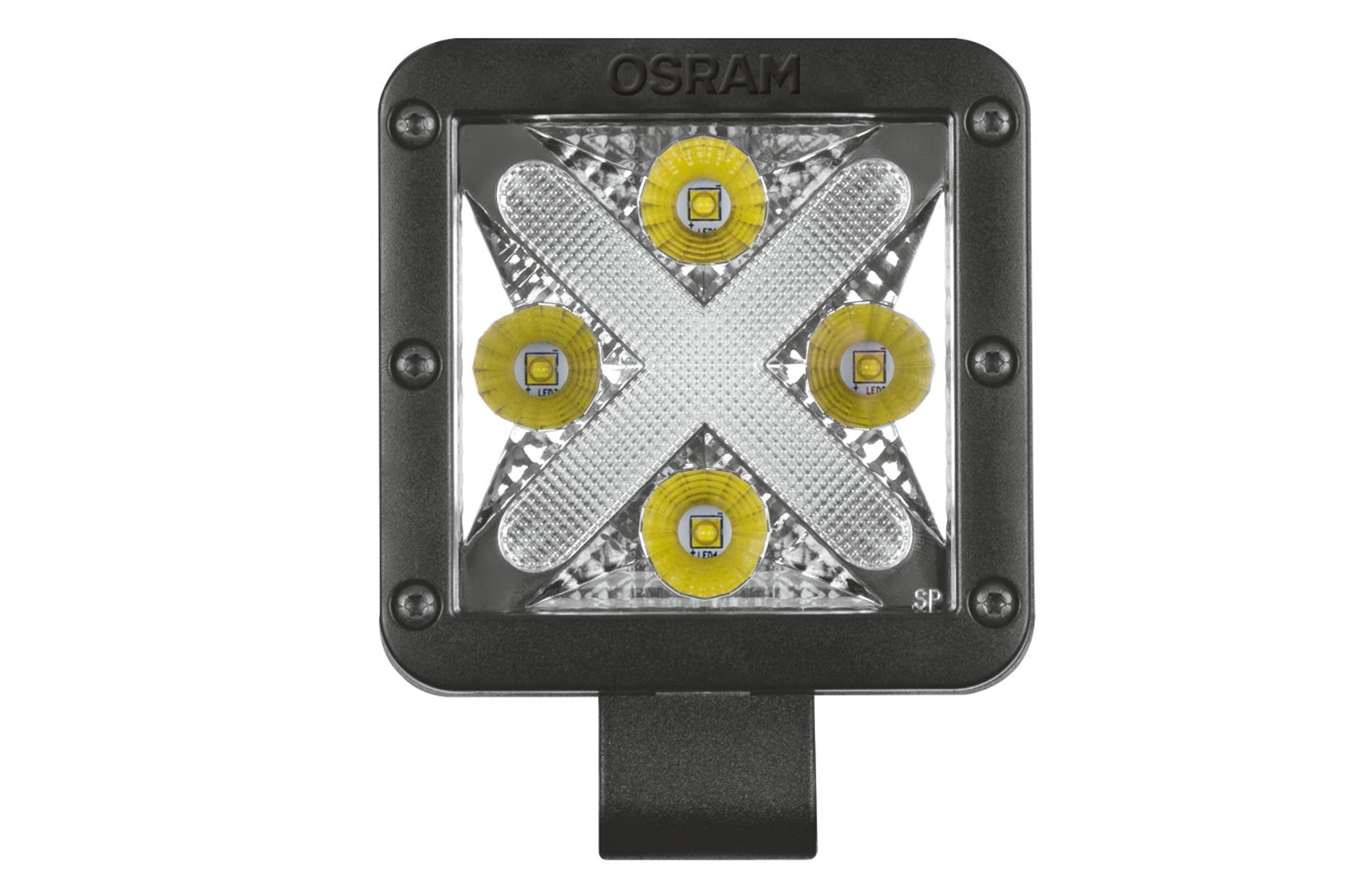

The LEDriving CUBE MX85-SP/-WD are the LED working lights of the Multifunctional Series that combine two LED lighting performances: working light and stylish X shape light. The LEDriving CUBE MX85 is available as Spot (SP) which offers a far field illumination up to 110 meters with a 13,5° beam angle as well as in the Wide beam pattern (WD) which is specialized in near field illumination with a light beam of up to 55 meter and a particularly wide beam angle of 43,5°. The LED lights in Cool White generate an intense light of 6000 Kelvin, available with 12 volt. The products are designed in a robust and compact design with a long lifetime of up to 5000 hours. They are equipped with extremely robust polycarbonate lenses to endure heavy-duty applications and have multiple voltage protection. These LED lights are characterized by an extremely high optic efficiency, homogeneous light distribution and reduced glaring. OSRAM offers a 5 year guarantee on the LEDriving CUBE MX85-SP/-WD. Refer to www.osram.com/am-guarantee for precise conditions.
Electrical data
Nominal voltage
12.0 V
Nominal wattage
20 W
Test voltage
13.5 V
Photometrical data
Luminous flux
1250 lm
Color temperature
6000 K
Light distance at 1lx [PIM]
110 m
Dimensions & weight
Height
121.0 mm
Width
57.0 mm
Length
85.0 mm
Product weight
500.00 g
Lifespan
Lifespan Tc
5000 h
Additional product data
Application (Category and Product specific)
Individual installation

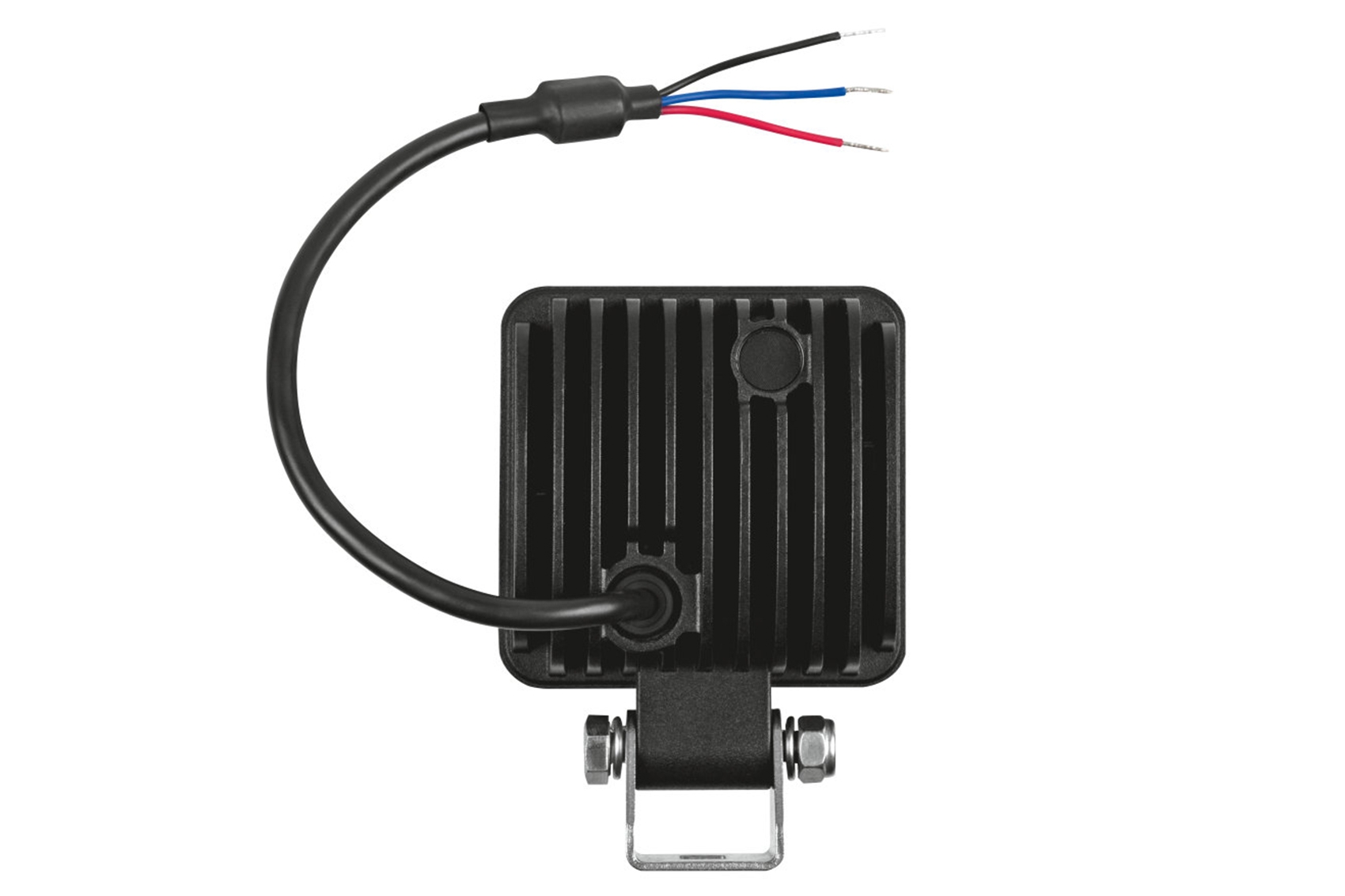

Connector to lamp
Wire Kit
Product type (off-road vs. on-road)
Off-road
Type of protection
IP67
Country specific categorizations
Order reference
LEDDL101 12V SP
